2-Ton One Sheave Snatch Blocks, with Eye, 3 Inches
SB
2
H
Single
Sheave
Snach Blocks
Snach Blocks
SWL
Tons
Tons
Sheaves
S =1
OD
Bushed
R=Roller
H=Hook
E=Eye
T=Tailboard
S=Shackle
E=Eye
T=Tailboard
S=Shackle
|
2-Ton One Sheave Snatch Blocks, with Eye, 3 Inches |
|||||
|
SB |
2 |
S | 3 | B |
H |
|
Single
Sheave Snach Blocks |
SWL Tons |
Number Sheaves S =1 |
Sheaves OD |
B=Bronze Bushed R=Roller |
H=Hook E=Eye T=Tailboard S=Shackle |
|
|
|||||
| Standard Wire |

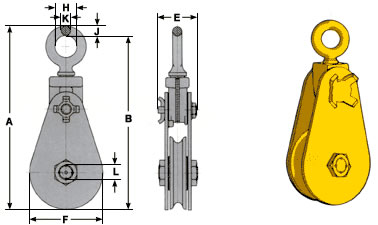

A | B | E | F | H | J | K | L | |||
| Model Number |
Rope Size |
Maximum Allow. |
Weight | Overall Lengtht |
Net Length |
Thickness | Width | Inside Width Shackle |
Shackles Thickness |
Shackle Width |
Center Pin Diameter |
| SB2S3BE | 5/16-3/8 | - | 7 | 8.980 | 8.420 | 3.000 | 3.375 | 1.250 | .625 | .625 | .750 |
|
4-Ton One Sheave Snatch Blocks, with Eye, 4-14 Inches |
|||||
|
SB |
2 |
S | 3 | B |
H |
|
Single
Sheave Snach Blocks |
SWL Tons |
Number Sheaves S =1 |
Sheaves OD |
B=Bronze Bushed R=Roller |
H=Hook E=Eye T=Tailboard S=Shackle |
| |
|||||
| Standard Wire |
A | B | E | F | H | J | K | L | |||
| Model Number |
Rope Size |
Maximum Allow. |
Weight | Overall Lengtht |
Net Length |
Thickness | Width | Inside Width Shackle |
Shackles Thickness |
Shackle Width |
Center Pin Diameter |
| SB4S4BE | 3/8-1/2 | 3/4 | 15 | 11.625 | 11 | 3.281 | 4.750 | 1.500 | .625 | .625 | 1 |
| SB4S4RE | 3/8-1/2 | 3/4 | 15 | 11.625 | 11 | 3.281 | 4.750 | 1.500 | .625 | .625 | 1 |
| SB4S6BE | 3/8-1/2 | 3/4 | 18 | 13.750 | 13.125 | 3.281 | 6.250 | 1.500 | .625 | .625 | 1 |
| SB4S6RE | 3/8-1/2 | 3/4 | 18 | 13.750 | 13.125 | 3.281 | 6.250 | 1.500 | .625 | .625 | 1 |
| SB4S8BE | 3/8-1/2 | 3/4 | 22 | 15.750 | 15.125 | 3.281 | 8.250 | 1.500 | .625 | .625 | 1 |
| SB4S8RE | 3/8-1/2 | 3/4 | 22 | 15.750 | 15.125 | 3.281 | 8.250 | 1.500 | .625 | .625 | 1 |
| SB4S10BE | 3/8-1/2 | 3/4 | 34 | 17.750 | 17.125 | 3.281 | 10.250 | 1.500 | .625 | .625 | 1.250 |
| SB4S10RE | 3/8-1/2 | 3/4 | 34 | 17.750 | 17.125 | 3.281 | 10.250 | 1.500 | .625 | .625 | 1.250 |
| SB4S12BE | 3/8-1/2 | 7/8 | 39 | 19.750 | 19.125 | 3.281 | 12.250 | 1.500 | .625 | .625 | 1.250 |
| SB4S12RE | 3/8-1/2 | 7/8 | 39 | 19.750 | 19.125 | 3.281 | 12.250 | 1.500 | .625 | .625 | 1.250 |
| SB4S14BE | 3/8-1/2 | 3/4 | 41 | 21.750 | 21.125 | 3.281 | 14.250 | 1.500 | .625 | .625 | 1.250 |
| SB4S14RE | 3/8-1/2 | 3/4 | 41 | 21.750 | 21.125 | 3.281 | 14.250 | 1.500 | .625 | .625 | 1.250 |
