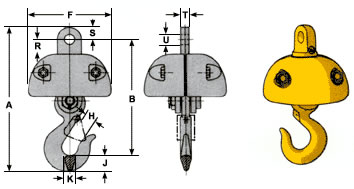

Midget Non-swiveling Overhaul Balls Type 4
OB
3
35
4
Overhall Ball
Tons S.W.L
Ball Weight Only
Type

.

.

.

.
  A B F H J K R S T U
Code
Model 		Weight Overall
Length		 Net
Length 		Ball
Diameter 		Throat
Opening
Hv. Dty.		 Hook
Thickness		 Hook
Width 		Pin to
Obstrution 		Pin to
End of
Fitting 		Thickness
of Eye		 Hole
Diameter
OB 3 35-4 35 15.625 13.125 6.250 1.062 1.375 1.125 1.750 1.125 .625 1.062
OB 535-4 41 16.625 14.750 6.250 1.500 1.875 1.375 1.750 1.125 1.250 1.281

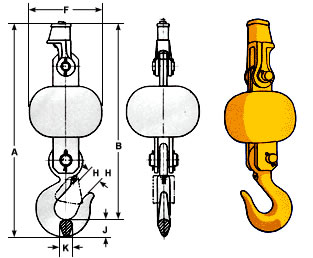

Midget Non-swiveling Overhaul Balls Type 6
OB
3
35
 6 WS4
1,2''
Overhall
Ball
Tons S.W.L
Ball
Weight Only
Type Wedge
Socket
Number
Wire
Rope
Size

.

.

.

.

.
        A B F H J K
Code
Model 		Weight Wire
Rope
Size
 Weight Overall
Length
 Net
Length
 Ball
Diameter
 Throat
Opening
Hv. Dty.
 Hook
Thickness

Hook
Width
OB 3 35-6 WS-4 3/8-1/2 39 19.625 18.500 6.250 1.062 1.375 1.125
OB 5 35-6 WS-5 1/2-9/16-5/8 48 23.875 22 6.250 1.500 1.875 1.375
OB 5 35-6 WS-6 5/8-3/4 49 24 22.062 6.250 1.500 1.375 1.375

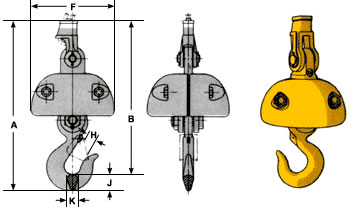

Midget Swiveling Overhaul Balls Type 4
OB
 3JEM 28
4
Overhall Ball
Swivel
Model 		Ball
Weight Only
Type

.

.

.

.

.
  A B F H J K R S T U
Code
Model 		Weight Overall
Length		 Net
Length 		Ball
Diameter 		Throat
Opening
Hv. Dty.		 Hook
Thickness		 Hook
Width 		Pin to
Obstrution 		Pin to
End of
Fitting 		Thickness
of Eye		 Hole
Diameter
OB-3JEM-28-4 36 13.437 10.875 7.937 1.062 1.375 1.125 1.375 1.187 .875 1.062



Midget Swiveling Overhaul Balls Type 6
OB
 3JEM 28 6 WS4
1,2''
Overhall Ball
Swivel
Model 		Ball
Weight Only		 Type Wedge
Socket
Number
Wire
Rope
Size

.

.

.

.

.
A B F H J K
Code
Model 		Weight Wire
Rope
Size
 Weight Overall
Length
 Net
Length
 Ball
Diameter
 Throat
Opening
Hv. Dty.
 Hook
Thickness

Hook
Width
OB-3JEM-28-6 WS-4 3/8-1/2 42 17.687 16.312 7.937 1.062 1.375 1.125

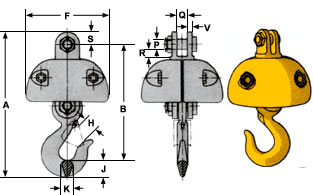

Midget Swiveling Overhaul Balls Type 7
OB
 3JEM 28
7
Overhall Ball
Swivel
Model 		Ball
Weight Only
Type

.

.

.

.

.
  A B F H J K P Q R S V
Code
Model 		Weight Overall
Length
 Net
Lengtht		 Ball
Diameter
Throat Opening
 Hook
Thickness

 Hook
Width
 Pin
Diameter
 Width
Between
Ears
 Pin
to
Obstr.
 Pin to
End of
Fitting

Thickness
of
Ear
LT. Dty. Hv. Dty.
OB-3JEM-28-7 41 13.687 11.125 7.937 1.062 1.375 1.375 1.125 1 1.875 1 .187 .500
