Componentes de Blocks, página 2/4.........................Ir para página.. 1.. 3 4 Eye & Hook Swivels |
||||
|
3 |
E |
H |
M |
 |
|
Safe
Working Limit Tons. |
Top Fitting E=Eye |
Botton Fitting H=Hook |
Midget Swivel |
|
. . . . |
||||
| A | B | F | H | J | K | R | S | T | U | ||
| Code Model |
Weight | Overall Length |
Net Length |
Swivel Diameter |
Throat Opening Hv. Dty. |
Hook Thickness |
Hook Width |
Pin
to Obstrution |
Pin
to End of Fitting |
Thickness of Eye |
Hole Diameter |
| 3EHM | 8 | 10.250 | 7.625 | 2.625 | 1.062 | 1.375 | 1.125 | 1.375 | 1.187 | .875 | 1.062 |
| 3EH | 15 | 13.250 | 10.625 | 3.250 | 1.062 | 1.375 | 1.125 | 1.875 | 1.250 | 1 | 1.312 |
| 5EH | 18 | 14.750 | 11.625 | 3.250 | 1.500 | 1.875 | 1.375 | 1.875 | 1.250 | 1 | 1.312 |
| 7EH | 18 | 14.750 | 11.625 | 3.250 | 1.500 | 1.875 | 1.375 | 1.875 | 1.250 | 1 | 1.312 |
| 9EH | 36 | 18 | 13.750 | 4 | 1.750 | 2.250 | 1.625 | 2.750 | 2 | 1.250 | 1.781 |
| 12EH | 39 | 19.375 | 14.750 | 4.437 | 1.906 | 2.625 | 1.937 | 2.375 | 2 | 1.250 | 1.781 |
| 15EH | 50 | 21.125 | 16.125 | 4.437 | 2.750 | 3 | 2.375 | 2.375 | 2 | 1.250 | 1.781 |
| 20EH | 82 | 24.625 | 18.500 | 5.250 | 3.500 | 3.750 | 3 | 2.875 | 2.375 | 1.625 | 2.093 |
| 25EH | 74 | 24.625 | 18.500 | 5.250 | 3.500 | 3.750 | 3 | 2.875 | 2.375 | 1.625 | 2.093 |
| 30EH | 109 | 26.375 | 19.875 | 6.500 | 3.500 | 3.750 | 3 | 2.750 | 2.750 | 1.750 | 2.312 |

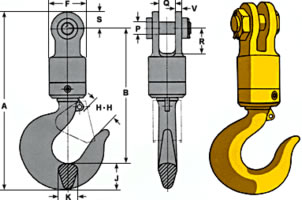

| Jaw & Hook Swivels | ||||
|
3 |
J |
H |
M |
 |
|
Safe
Working Limit Tons. |
Top Fitting J=Jaw |
Botton Fitting H=Hook |
Midget Swivel |
|
. . . . |
||||
| A | B | F | H | J | K | P | Q | R | S | V | ||
| Code Model |
Weight | Overall Length |
Net Length |
Swivel Diameter |
Throat Opening Hv. Dty. |
Hook Thickness |
Hook Width |
Pin
Diameter |
Width of Ears |
Pin
to Obstrution |
Pin
to End of Fitting |
Thickness of Ear |
| 3JHM | 9 | 10.250 | 7.625 | 2.625 | 1.062 | 1.375 | 1.125 | 1 | 1 | 1.375 | 1.187 | .500 |
| 3JH | 17 | 13.375 | 10.625 | 3.250 | 1.062 | 1.375 | 1.125 | 1 | 1.500 | 2.125 | 1.375 | .562 |
| 5JH | 20 | 15 | 11.750 | 3.250 | 1.500 | 1.875 | 1.375 | 1.250 | 1.500 | 2.125 | 1.375 | .562 |
| 7JH | 20 | 15 | 11.750 | 3.250 | 1.500 | 1.875 | 1.375 | 1.250 | 1.500 | 2.125 | 1.375 | .562 |
| 9JH | 41 | 18.125 | 13.875 | 4 | 1.750 | 2.250 | 1.625 | 1.750 | 1.750 | 2.750 | 2 | .750 |
| 12JH | 46 | 19.625 | 15 | 4.437 | 1.906 | 2.625 | 1.937 | 1.750 | 2 | 3 | 2 | .750 |
| 15JH | 56 | 21.375 | 16.375 | 4.437 | 2.750 | 3 | 2.375 | 1.750 | 2 | 3 | 2 | .750 |
| Eye & Eye Swivels | ||||
|
3 |
E |
E |
M |
 |
|
Safe
Working Limit Tons. |
Top Fitting E=Eye |
Botton Fitting E=Eye |
Midget Swivel |
|
. . . . |
||||
| A | B | F | R | S | T | U | ||
| Code Model |
Weight | Overall Length |
Net Length |
Swivel Diameter |
Pin
to Obstruction |
Pin
to End of Fitting |
Thickness of Eye |
Hole Diameter |
| 3EEM | 7 | 8 | 5.625 | 2.625 | 1.375 | 1.187 | .875 | 1.062 |
| 4EE | 16 | 11.875 | 9.375 | 3.250 | 1.875 | 1.375 | 1 | 1.312 |
| 7EE | 16 | 11.875 | 9.375 | 3.250 | 1.875 | 1.375 | 1 | 1.312 |
| 12EE | 30 | 15 | 11 | 4 | 2.750 | 2 | 1.250 | 1.781 |
| 19EE | 34 | 15.500 | 11.500 | 4.437 | 2.375 | 2 | 1.250 | 1.781 |
| 25EE | 44 | 17.750 | 13 | 5.250 | 2.875 | 2.375 | 1.625 | 2.093 |
| 30EE | 91 | 20.125 | 14.625 | 6.500 | 2.750 | 2.750 | 1.750 | 2.312 |
| Jaw & Eye Swivels | ||||
|
3 |
J |
E |
M |
 |
|
Safe
Working Limit Tons. |
Top Fitting J=Jaw |
Botton Fitting E=Eye |
Midget Swivel |
|
. . . . |
||||
| A | B | F | P | Q | R | S | T | U | V | ||
| Code Model |
Weight | Overall Length |
Net Length |
Swivel Diameter |
Pin
Diameter |
Width Between Ears |
Pin
to Obstruction |
Pin
to End of Fitting |
Thickness of Eye |
Hole Diameter |
Thickness of Ear |
| 3JEM | 8 | 8 | 5.625 | 2.625 | 1 | 1 | 1.375 | 1.187 | .875 | 1.062 | .500 |
| 4JE | 18 | 12.250 | 9.500 | 3.250 | 1.250 | 1.500 | 2.125 | 1.375 | 1 | 1.312 | .562 |
| 7JE | 18 | 12.250 | 9.500 | 3.250 | 1.250 | 1.500 | 2.125 | 1.375 | 1 | 1.312 | .562 |
| 12JE | 35 | 15.125 | 11.125 | 4 | 1.750 | 1.750 | 2.750 | 2 | 1.250 | 1.781 | .750 |
| 19JE | 41 | 15.750 | 11.750 | 4.437 | 1.750 | 2 | 3 | 2 | 1.250 | 1.781 | .750 |
| Jaw & Jaw Swivels | ||||
|
3 |
J |
J |
M |
 |
|
Safe
Working Limit Tons. |
Top Fitting J=Jaw |
Botton Fitting J=Jaw |
Midget Swivel |
|
. . . . |
||||
| A | B | F | P | Q | R | S | V | ||
| Code Model |
Weight | Overall Length |
Net Length |
Swivel Diameter |
Pin
Diameter |
Width Between Ears |
Pin
to Obstruction |
Pin
to End of Fitting |
Thickness of Eye |
| 3JJM | 9 | 8.250 | 5.875 | 2.625 | 1 | 1 | 1.375 | 1.187 | .500 |
| 4JJ | 22 | 12.500 | 9.750 | 3.250 | 1.250 | 1.500 | 2.125 | 1.375 | .562 |
| 7JJ | 22 | 12.500 | 9.750 | 3.250 | 1.250 | 1.500 | 2.125 | 1.375 | .562 |
| 12JJ | 36 | 15.562 | 11.625 | 4 | 1.750 | 1.750 | 2.750 | 2 | .750 |
| 19JJ | 46 | 16.625 | 12.625 | 4.437 | 1.750 | 2 | 3 | 2 | .750 |
| Eye & Jaw Swivels | ||||
|
3 |
E |
J |
M |
 |
|
Safe
Working Limit Tons. |
Top Fitting E=Eye |
Botton Fitting J=Jaw |
Midget Swivel |
|
. . . . |
||||
| A | B | F | P | Q | R | S | T | U | V | ||
| Code Model |
Weight | Overall Length |
Net Length |
Swivel Diameter |
Pin
Diameter |
Width Between Ears |
Pin
to Obstruction |
Pin
to End of Fitting |
Thickness of Eye |
Hole Diameter |
Thickness of Ear |
| 3EJM | 8 | 8.250 | 5.875 | 2.625 | 1 | 1 | 1.375 | 1.187 | .875 | 1.062 | .500 |
| 4EJ | 21 | 12.375 | 9.625 | 3.250 | 1.250 | 1.500 | 2.125 | 1.375 | 1 | 1.312 | .562 |
| 7EJ | 21 | 12.375 | 9.625 | 3.250 | 1.250 | 1.500 | 2.125 | 1.375 | 1 | 1.312 | .562 |
| 12EJ | 32 | 15.500 | 11.500 | 4 | 1.750 | 1.750 | 2.750 | 2 | 1.250 | 1.781 | .750 |
| 19EJ | 38 | 16.375 | 12.375 | 4.437 | 1.750 | 2 | 3 | 2 | 1.250 | 1.781 | .750 |
