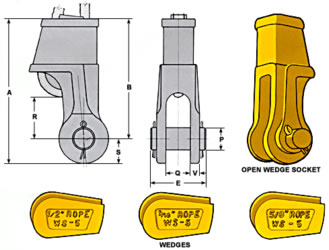

Eye & Hook Swivels
WS
6
3/4''
Wedge
Socket
Socket
Body
Number
Number
Wire
Hope
Wedge Size
Wedge Size
.
.
.
.
Componentes de Blocks, página 3/4.........................Ir para página.. 1.. 2 4 Eye & Hook Swivels |
|||
|
WS |
6 |
3/4'' |
|
|
Wedge Socket |
Body Number |
Wire
Hope Wedge Size |
|
. . . . |
|||
| A | B | E | P | Q | R | S | V | |||
| Code Model |
Wire
Rope Size |
Weight | Overall Length |
Net Length |
Total Thickness |
Pin Diameter |
Width Between Ears |
Pin
to Obstrution |
Pin
to End of Fitting |
Thickness of Ear |
| WS-4 | 3/8 | 3 | 6.500 | 5.375 | 2.625 | 1 | 1 | 1.750 | 1.125 | .375 |
| WS-4 | 1/2 | 3 | 6.500 | 5.375 | 2.625 | 1 | 1 | 1.937 | 1.125 | .375 |
| WS-5 | 1/2 | 8.5 | 8.750 | 7.250 | 3.500 | 1.250 | 1.375 | 2.437 | 1.500 | .625 |
| WS-5 | 9/16 | 8.5 | 8.750 | 7.250 | 3.500 | 1.250 | 1.375 | 2.812 | 1.500 | .625 |
| WS-5 | 5/8 | 8.5 | 8.750 | 7.250 | 3.500 | 1.250 | 1.375 | 2.750 | 1.500 | .625 |
| WS-6 | 5/8 | 9 | 8.812 | 7.312 | 3.500 | 1.250 | 1.500 | 2.500 | 1.500 | .562 |
| WS-8A | 5/8 | 17 | 11.250 | 9.125 | 4.125 | 1.625 | 1.750 | 3.187 | 2.125 | 1 |
| WS-6 | 3/4 | 9 | 8.812 | 7.312 | 3.500 | 1.250 | 1.500 | 1.780 | 1.500 | .562 |
| WS-8A | 3/4 | 17 | 11.250 | 9.125 | 4.125 | 1.625 | 1.750 | 2.844 | 2.125 | 1 |
| WS-7 | 7/8 | 15 | 11 | 9.500 | 3.500 | 1.250 | 1.312 | 2.937 | 1.500 | .625 |
| WS-8 | 7/8 | 16 | 11.375 | 9.500 | 4.125 | 1.625 | 1.750 | 2.875 | 1.875 | .750 |
| WS-7 | 1 | 14.5 | 11 | 9.500 | 3.500 | 1.250 | 1.315 | 2.875 | 1.500 | .625 |
| WS-8 | 1 | 16 | 11.375 | 9.500 | 4.125 | 1.625 | 1.750 | 2.500 | 1.875 | .750 |
| WS-10 | 1-1/8 | 45 | 15.437 | 13.250 | 4.125 | 1.625 | 1.750 | 3.062 | 2.187 | .750 |
| WS-11 | 1-1/8 | 55 | 16 | 13.500 | 5.500 | 2.500 | 2.500 | 4.500 | 2.500 | .812 |
| WS-10 | 1-1/4 | 45 | 15.437 | 13.250 | 4.125 | 1.625 | 1.750 | 3.125 | 2.187 | .750 |
| WS-11 | 1-1/4 | 55 | 16 | 13.500 | 5.500 | 2.500 | 2.500 | 4.250 | 2.500. | .812 |
| FS-26 | 1-1/2 | 99 | 18.375 | 15 | 6.875 | 3 | 2.625 | 4.187 | 3.375 | 1.250 |
|

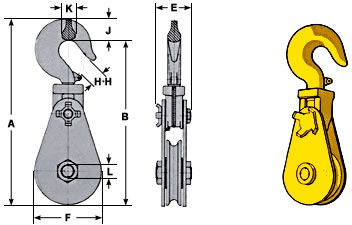

2-Ton One Sheave Snatch Blocks, with Hook, 3 Inches |
|||||
|
SB |
2 |
S | 3 | B |
H |
|
Single
Sheave Snach Blocks |
SWL Tons |
Number Sheaves S =1 |
Sheaves OD |
B=Bronze Bushed R=Roller |
H=Hook E=Eye T=Tailboard S=Shackle |
 |
|||||
| Standard Wire |
A | B | E | F | H | H | J | K | L | |||
| Model Number |
Rope Size |
Maximum Allow. |
Weight | Overall Lengtht |
Net Length |
Thickness | Width | Throat No Latch |
Opening Light Duty |
Hook Thickness |
Hook Width |
Center Pin |
| SB2S3BH | 5/16-3/8 | - | 9 | 10.500 | 9.500 | 2.500 | 3.375 | 1.125 | 1.000 | 1.000 | .688 | .750 |
|
4-Ton One Sheave Snatch Blocks, with Hook, 4-14 Inches |
|||||
|
SB |
2 |
S | 3 | B |
H |
|
Single
Sheave Snach Blocks |
SWL Tons |
Number Sheaves S =1 |
Sheaves OD |
B=Bronze Bushed R=Roller |
H=Hook E=Eye T=Tailboard S=Shackle |
 |
|||||
| Standard Wire |
A | B | E | F | H | H | J | K | L | |||
| Model Number |
Rope Size |
Maximum Allow. |
Weight | Overall Lengtht |
Net Length |
Thickness | Width | Throat No Latch |
Opening Light Duty |
Hook Thickness |
Hook Width |
Center Pin |
| SB4S4BH | 3/8-1/2 | 3/4 | 15 | 14.500 | 12.625 | 3.281 | 4.750 | 1.437 | 1.250 | 1.875 | 1.125 | 1 |
| SB4S4RH | 3/8-1/2 | 3/4 | 15 | 14.500 | 12.625 | 3.281 | 4.750 | 1.437 | 1.250 | 1.875 | 1.125 | 1 |
| SB4S6BH | 3/8-1/2 | 3/4 | 18 | 16.625 | 14.750 | 3.281 | 6.250 | 1.437 | - | 1.875 | 1.125 | 1 |
| SB4S6RH | 3/8-1/2 | 3/4 | 18 | 16.625 | 14.750 | 3.281 | 6.250 | 1.437 | - | 1.875 | 1.125 | 1 |
| SB4S8BH | 3/8-1/2 | 3/4 | 22 | 18.625 | 16.750 | 3.281 | 8.250 | 1.437 | - | 1.875 | 1.125 | 1 |
| SB4S8RH | 3/8-1/2 | 3/4 | 22 | 18.625 | 16.750 | 3.281 | 8.250 | 1.437 | - | 1.875 | 1.125 | 1 |
| SB4S10BH | 3/8-1/2 | 3/4 | 34 | 20.625 | 18.750 | 3.281 | 10.250 | 1.437 | - | 1.875 | 1.125 | 1.250 |
| SB4S10RH | 3/8-1/2 | 3/4 | 34 | 20.625 | 18.750 | 3.281 | 10.250 | 1.437 | - | 1.875 | 1.125 | 1.250 |
| SB4S12BH | 3/8-1/2 | 7/8 | 39 | 22.625 | 20.750 | 3.281 | 12.250 | 1.437 | - | 1.875 | 1.125 | 1.250 |
| SB4S12RH | 3/8-1/2 | 7/8 | 39 | 22.625 | 20.750 | 3.281 | 12.250 | 1.437 | - | 1.875 | 1.125 | 1.250 |
| SB4S14BH | 3/8-1/2 | 3/4 | 41 | 24.625 | 22.750 | 3.281 | 14.250 | 1.437 | - | 1.875 | 1.125 | 1.250 |
| SB4S14RH | 3/8-1/2 | 3/4 | 41 | 24.625 | 22.750 | 3.281 | 14.250 | 1.437 | - | 1.875 | 1.125 | 1.250 |
|
8-Ton One Sheave Snatch Blocks, with Hook, 6-14 Inches |
|||||
|
SB |
2 |
S | 3 | B |
H |
|
Single
Sheave Snach Blocks |
SWL Tons |
Number Sheaves S =1 |
Sheaves OD |
B=Bronze Bushed R=Roller |
H=Hook E=Eye T=Tailboard S=Shackle |
| |
|||||
| Standard Wire |
A | B | E | F | H | H | J | K | L | |||
| Model Number |
Rope Size |
Maximum Allow. |
Weight | Overall Lengtht |
Net Length |
Thickness | Width | Throat No Latch |
Opening Light Duty |
Hook Thickness |
Hook Width |
Center Pin |
| SB8S6BH | 5/8-3/4 | 1 | 29 | 19 | 16.875 | 3.687 | 6.250 | 2 | - | 2.125 | 1.375 | 1.500 |
| SB8S6RH | 5/8-3/4 | 1 | 29 | 19 | 16.875 | 3.687 | 6.250 | 2 | - | 2.125 | 1.375 | 1.500 |
| SB8S8BH | 5/8-3/4 | 7/8 | 32 | 21 | 18.875 | 3.687 | 8.250 | 2 | - | 2.125 | 1.375 | 1.500 |
| SB8S8RH | 5/8-3/4 | 7/8 | 32 | 21 | 18.875 | 3.687 | 8.250 | 2 | - | 2.125 | 1.375 | 1.500 |
| SB8S10BH | 5/8-3/4 | 3/4 | 40 | 23 | 20.875 | 3.687 | 10.250 | 2 | - | 2.125 | 1.375 | 1.500 |
| SB8S10RH | 5/8-3/4 | 3/4 | 40 | 23 | 20.875 | 3.687 | 10.250 | 2 | - | 2.125 | 1.375 | 1.500 |
| SB8S12BH | 5/8-3/4 | 7/8 | 46 | 25 | 22.875 | 3.687 | 12.250 | 2 | - | 2.125 | 1.375 | 1.500 |
| SB8S12RH | 5/8-3/4 | 7/8 | 46 | 25 | 22.875 | 3.687 | 12.250 | 2 | - | 2.125 | 1.375 | 1.500 |
| SB8S14BH | 5/8-3/4 | 7/8 | 58 | 27 | 24.875 | 3.687 | 14.250 | 2 | - | 2.125 | 1.375 | 1.500 |
| SB8S14RH | 5/8-3/4 | 7/8 | 58 | 27 | 24.875 | 3.687 | 14.250 | 2 | - | 2.125 | 1.375 | 1.500 |
|
12-Ton One Sheave Snatch Blocks, with Hook, 6-16 Inches |
|||||
|
SB |
2 |
S | 3 | B |
H |
|
Single
Sheave Snach Blocks |
SWL Tons |
Number Sheaves S =1 |
Sheaves OD |
B=Bronze Bushed R=Roller |
H=Hook E=Eye T=Tailboard S=Shackle |
| |
|||||
| Standard Wire |
A | B | E | F | H | H | J | K | L | |||
| Model Number |
Rope Size |
Maximum Allow. |
Weight | Overall Lengtht |
Net Length |
Thickness | Width | Throat No Latch |
Opening Light Duty |
Hook Thickness |
Hook Width |
Center Pin |
| SB12S6BH | 3/4-7/8 | 1-1/8 | 42 | 20.750 | 18.125 | 4.375 | 6.250 | 2.500 | - | 2.625 | 1.625 | 2 |
| SB12S6RH | 3/4-7/8 | 1-1/8 | 42 | 20.750 | 18.125 | 4.375 | 6.250 | 2.500 | - | 2.625 | 1.625 | 2 |
| SB12S8BH | 3/4-7/8 | 1-1/8 | 53 | 22.750 | 20.125 | 4.375 | 8.250 | 2.500 | - | 2.625 | 1.625 | 2 |
| SB12S8RH | 3/4-7/8 | 1-1/8 | 53 | 22.750 | 20.125 | 4.375 | 8.250 | 2.500 | - | 2.625 | 1.625 | 2 |
| SB12S10BH | 3/4-7/8 | 1-1/8 | 66 | 24.750 | 22.125 | 4.375 | 10.250 | 2.500 | - | 2.625 | 1.625 | 2 |
| SB12S10RH | 3/4-7/8 | 1-1/8 | 66 | 24.750 | 22.125 | 4.375 | 10.250 | 2.500 | - | 2.625 | 1.625 | 2 |
| SB12S12BH | 3/4-7/8 | 1-1/8 | 75 | 26.750 | 24.125 | 4.375 | 12.250 | 2.500 | - | 2.625 | 1.625 | 2 |
| SB12S12RH | 3/4-7/8 | 1-1/8 | 75 | 26.750 | 24.125 | 4.375 | 12.250 | 2.500 | - | 2.625 | 1.625 | 2 |
| SB12S14BH | 3/4-7/8 | 1-1/8 | 92 | 28.750 | 26.125 | 4.375 | 14.250 | 2.500 | - | 2.625 | 1.625 | 2 |
| SB12S14BH | 3/4-7/8 | 1-1/8 | 92 | 28.750 | 26.125 | 4.375 | 14.250 | 2.500 | - | 2.625 | 1.625 | 2 |
| SB12S16BH | 3/4-7/8 | 7/8 | 119 | 30.750 | 28.125 | 4.375 | 16.250 | 2.500 | - | 2.625 | 1.625 | 2 |
| SB12S16BH | 3/4-7/8 | 7/8 | 119 | 30.750 | 28.125 | 4.375 | 16.250 | 2.500 | - | 2.625 | 1.625 | 2 |
